Thermal equipment

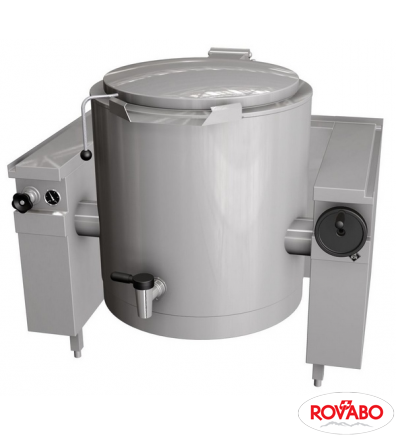

Regulation via manual steam valve; for steam generator installation on site. The tilting angle of the kettle, more than 90°, makes pouring, emptying and cleaning much easier. Ideal kettle positioning prevents spills and guarantees that the kettle is fully emptied. A greater pouring height allows easier emptying into large containers. Double-walled hinged lid and mixer tap as standard. Various fittings and displays are integrated into the side frames. Inner kettle Ø665 mm, 645 mm deep, material No. 1.4404 (AISI 316). Heat up time 26 min. (according to DIN 18855). Steam valve DN 25, air valve, pressure gauge. Nominal thermal load 51 kW (81 kg/h), steam pressure connection 0.5-0.8 bar. Heat emission sensitive: 1.78 kW, latent: 10.2 kW. Accessories: extra large drain cock 1½" made of chrome nickel steel, 1 drain filter, 1 mixer tap with outlet R¾" (DN 20). Optional accessories: 2 chrome nickel steel cooking inserts, perforation Ø10 mm; 1 pair of lifting hooks; 1 straining sieve, square holes 8 mm; 1 measuring rod; appliance foot, 200 mm high, pluggable +/– 15 mm height adjustable (4 feet). Condensation strainer, non-return valve, dirt filter on-site!
