Thermal equipment

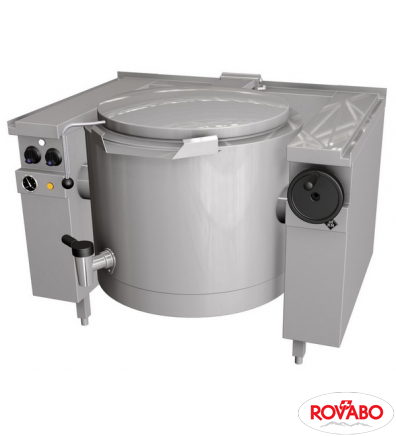

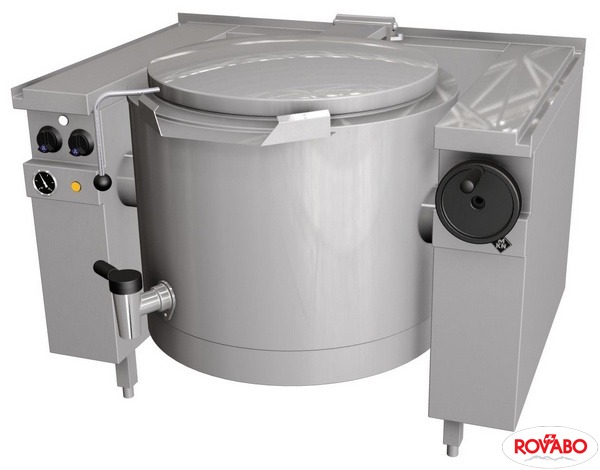

Inner kettle Ø630 mm, 397 mm deep, made completely of extremely corrosion-resistant chrome nickel steel (1.4404) (AISI 316), double jacketed, with separate, integrated and maintenance-free VAPRO steam generator for short heating up times and low energy and water consumption as well as highly efficient. Heat up time 26 min. (according to DIN 18855).  Short heating up times with VAPRO pressure steam system. Automatic process water monitoring and feed – is constantly ready for use. 3 cooking programmes as standard (light simmering, medium boiling and strong boiling). Thermostatic or electronic temperature regulation. Double-walled hinged lid and mixer tap as standard. The tilting angle of the kettle, more than 90°, makes pouring, emptying and cleaning much easier. Ideal kettle positioning prevents spills and guarantees that the kettle is fully emptied. A greater pouring height allows easier emptying into large containers. Various fittings and displays are integrated into the side frames. Power control switch, end switch, thermostat, safety temperature monitor, control lamps, tubular heating elements, pilot heating elements, contactor, water solenoid valve, water level regulator with electrode, mains connection, IpX5. Air valve, safety valve. Heat emission sensitive: 0.7 kW, latent: 4.2 kW. Connected load 21 kW. Equipped as standard with interface for connection to an energy optimization system according to DIN 18875 and potential free contact. Accessories: extra large drain cock 1½" made of chrome nickel steel, 1 drain filter, 1 mixer tap with outlet R¾" (DN 20). Optional accessories: 2 chrome nickel steel cooking inserts, perforation Ø10 mm; 1 pair of lifting hooks; 1 straining sieve, square holes 8 mm; 1 measuring rod; appliance foot, 200 mm high, pluggable +/– 15 mm height adjustable (4 feet).
