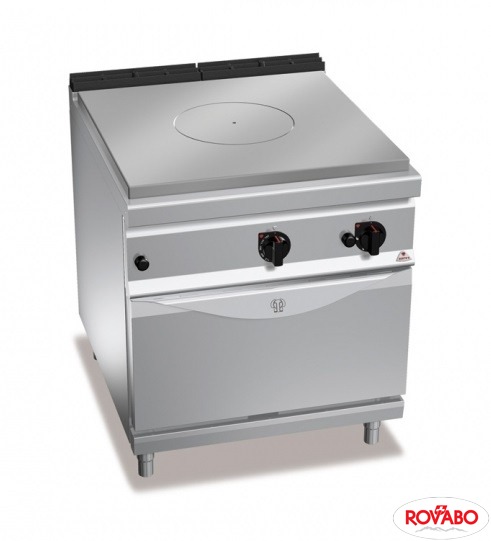

Gas solid top with 4хGN2/1 oven, 13 kW
Model | G9TP+FG |
Power Type | Gas |
Power | 20.8 kW |
Capacity | 4xGN 2/1 |
Dimensions | 800x900x900 mm |
Weight | 214 kg |
Worktop, front and side panels made of AISI 304 stainless steel. Inside made of stainless steel. 17.884 kcal/h. Central cast iron burner with optimized combustion, 13 kW maximum power with thermocouple safety valve and pilot flame. Piezoelectric ignition and coating of the combustion chamber from vermiculite, a high performance insulating material. Steel plate of high thickness and differentiated thermal areas: maximum temperature at the centre, decreasing to the edges. Gas oven with self-stabilized flame burner positioned under the enamelled steel base and adjustable thermostat from 160° to 280°. Oven chamber from AISI 430 with 4-level supports and internal, pressed and ribbed door from stainless steel. Internal chimney from stainless steel and burners support from AISI 430 stainless steel. High resistance handle from AISI 304 stainless steel of 20/10 thickness.
