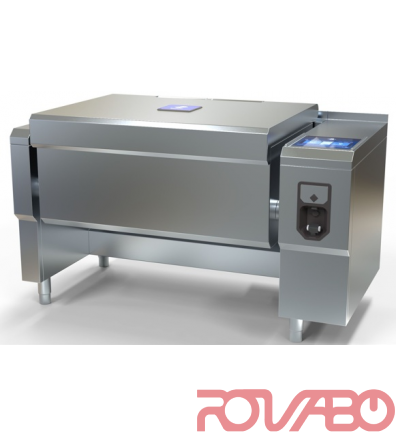

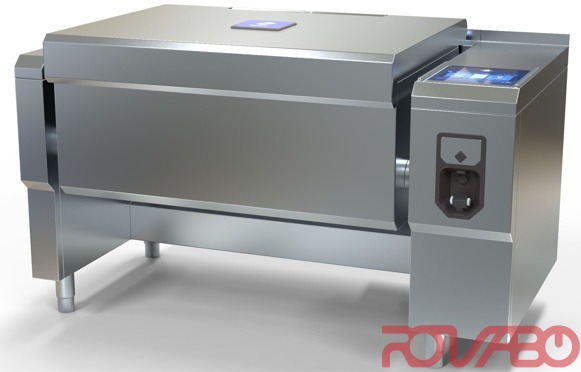

Electric tilting pressure bratt pan, 150 l
Model | MKN_FLEXICHEF3/150 |
Power Type | Electrical |
Power | 34.0 kW |
Capacity | 150 l |
Dimensions | 1600x907x835 mm |
Weight | 390 kg |
Voltage | 400 V/3/50 Hz |
Producer | MKN Maschinenfabrik Kurt Neubauer GmbH & Co. KG |
FlexiChef is a multifunctional fully flexible tilting pan in 5 sizes for high speed cooking. FlexiChef makes everything possible: cooking, Sous Vide cooking, frying, deep frying or pressure cooking. The only horizontal cooking appliance equipped with an automatic cleaning system SpaceClean (in 2 min only! compared to conventional MKN equipment). Descaling (with SpaceClean) – extended application of FlexiChef. Automatic cooking (AutoChef) in 10 cooking categories, from meat to perfection (regeneration); manual cooking with 9 cooking programmes. ChefsHelp - Step by step instructions for perfect results. Thanks to ReadyXpress - high speed cooking it is 3 times faster than conventional cooking and twice as fast as conventional pressure cooking equipment! Turbo PowerBlock - pan bottoms with intelligent heating system (energy saving and efficient). FlexiZone: a complete dish in only 1 skillet pan divided in up to 3 zones with individually controlled temperature and time - this saves space, time and energy. MaxPower and FlexPower variants available: 34 & 26.2 kW. Automatic filling, automatic emptying, automatic portioning (patent). Front panel with USB 2.0 port (Transfer of HACCP data and cooking programmes). Integrated Ethernet interface. Electronic multipoint core temperature probe. Appliance fully prepared for easy connection to electricity and water/waste water (provided by customer). Integrated siphon. Motorised drain valve flush mounted in the bottom of the skillet pan. Electric motor controlled lid. Size 3 deep (150 L). Operating panel (simple operation with MagicPilot OS - 10 inch display, as your smartphone) on the left or on the right (option). Favourites & Quick Start - immediate access to your favourite functions from start screen. All pan sizes can be indivually combined with the control panel in the middle (FlexiChef Team). Pan dimensions: 1023x543x315 mm; Oil capacity max.: 49 L. Cold/hot (max. 60°C) water (drinking water): Flow rate min. 13 l/min, pressure 2-6 bar, Carbonate hardness: < 4,5 mmol/l, dimensions 3/4" AG, DN 20. Drain water connection: DN 50, flow rate 50 l/min (fixed connection) and 70 l/min (floor drain). Optional connection to MKN OPTIMA 850 possible; additional space not required. Options: connection to Connected Kitchen; Socket 230 V; integrated hand shower; plinth base cover; ServiceApp; fire detection interface; external signal interface; energy optimization system, potential free contact; emergency stop switch; external sous vide core temperature sensor.
