Thermal equipment

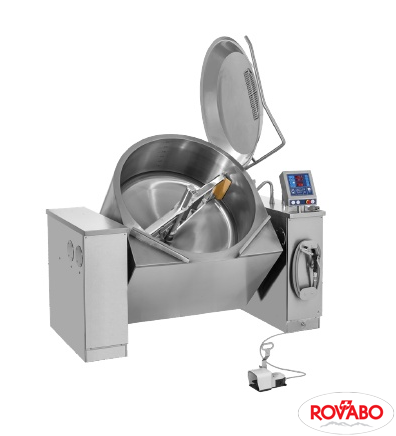

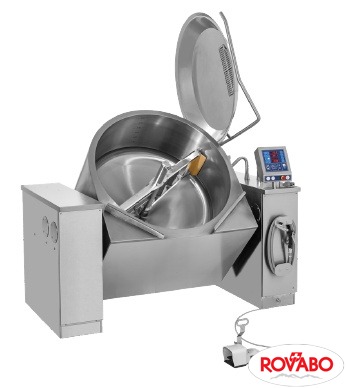

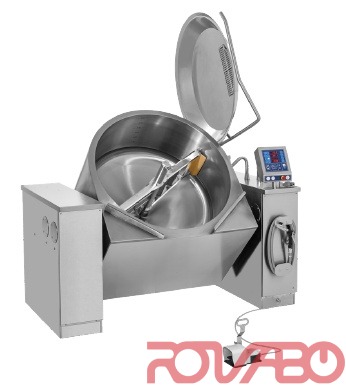

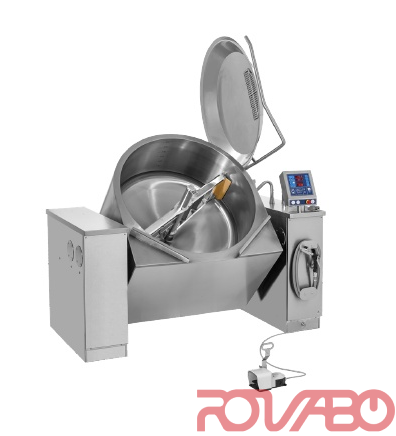

Kettle for large volumes with integrated lightweight hygienic (no joints in the food area) stirrer to safe energy, ergonomic hinged lid in stainless steel with gas spring and inspection hatch. The control can be mounted either to the right or to the left of the kettle. Maxi AutoTemp 32, MaxiMix AutoTemp 56 and MaxiMix AutoChef 86 can be combined. Heating directly with 1 bar steam pressure. Time to boil 10-90°C [min]: 38. Cold water: 1.5-6 bar pressure, 35 l/min (hot water is only used when the kettle is equipped with a spray gun or the possibility to use hot water in the kettle). Ventilation: 17.6 kg/h (if external steam generator: 10-90°, 20 min. - 227 kg/h steam consumption; 7-8 bar, 0.5 l/min compressed air); stirrer: 3 kW, 477 Nm torque, 5-140 rounds per minute. Noise from the machine < 55 dB(A). Distance under the kettle: 65 mm. Control AutoTemp 56, control by the food temperature and heating power dynamic steps (1-9). 15 pre-defined programs with 10 variants, 8 programs of which require the chilling function to be selected, for heating, chilling, stirring and water filling. The programs include timer functions, cook-and-hold, stirring programs and delayed start. Entire processes can also be performed automatically using heating and cooking followed by chilling. 6 dynamic stirring programs for different food, gentle stirring (e.g. when warming or chilling). Easily detachable scrapers on the stirrer. SlowMix - stirring with open lid and speed adjusted between 5-20 rpm. Waterfilling with integrated flowmeter, through a large drip-free spout on the pillar. Litre markings in the bowl. Adjustable TiltBack for easy pouring without dripping. Unheated and insulated top to reduce heat radiation and save energy, also minimizing the risk of burn to the operator and burn of food. A high insulation of the kettles steam chamber - effectiveness up to 97%, saving energy and improving conditions around the kettle. Fast heating: a special steam generator means that the kettle can be used with only a small amount of water around the heating elements. Adjustable controlbox placed at a good working height. Access code to lock the kettle. Error codes making troubleshooting easier. Balanced current reducing connection lost. Accessories: whipping tool for whipping egg white or cream; the cleaning tool MultiClean for automatic cleaning with 4+2 spring-loaded stiff brushes in the kettle bowl following its shape, fitted in the same way as the stirrer; LED light in the kettle bowl when the lid is closed; GN-support under the spout of the tilted kettle; pedal for handfree operation - tilting, SlowMix or manually water filling of the kettle, chosen in the display and activated by the pedal; cooling with tap water: water is fed through the steam jacket, where it chills the content of the kettle and afterwards drained via the floor grate; the sanitary butterfly valve fitted to the front of the kettle, enabling liquid products to be pumped out of the kettle through this valve; the solid spray gun, fitted to a hose supplied from a separate mixing tap; sieve plate and pouring plate fitted to the kettle’s spout - the first one used when water in the kettle is to be drained from potatoes, pasta, etc., the second one used for control of liquids emptying; measuring rod suspended over the lip of the kettle, used for measuring the kettle contents; tool trolley used to store loose accessories for up to 2 kettles such as the stirrer, cleaning tool and sieve plate; for a fixed storage of 2 tools also a wall bracket can be used; rotatable lid - easy access for cleaning; heating by direct steam - connecting the kettle to an inhouse steam supply; 60 cm long tube cleaner with brush to clean the middle tubes of the stirrer; fixtures embedded into the floor with pillars secured directly to the fixture, supplied complete with distance keepers; separate bearing for attaching the kettle’s supporting shaft and replaces a supporting pillar, fitted to anything which can support the weight of the kettle, such as an existing pillar, other equipment or a wall.
