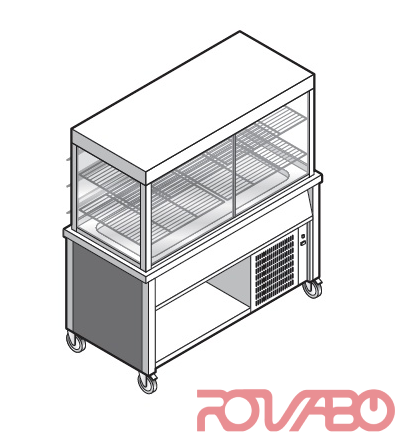

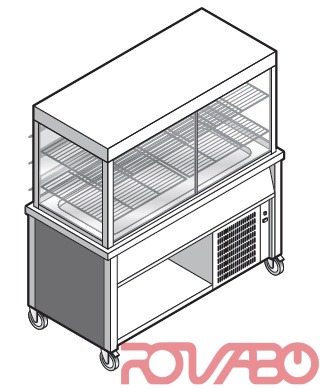

Refrigerated display case on static refrigerated tank, open cupboard, 4 GN1/1, +4/+12°С
| Model | HCVTRVG15 |
| Power Type | Electrical |
| Power | 0.7 kW |
| Temperature | +4/+12ºС |
| Capacity | 4 GN1/1 |
| Dimensions | 1500x700x1620 mm |
| Voltage | 230V 1F+N |
Top H = 50 mm made of stainless steel AISI 304, th. 12/10 with rounded edges. Welded and rounded tank 1280x510x210 mm for a better cleaning (GN containers H = 200 mm). Contact cooling refrigeration through contact coils under the top. Insulation by high density expanded polyurethane without C.F.C. and H.C.F.C. Display case 1482x642x700 mm with 2 grid shelves, refrigerated through ventilated evaporator fixed in the ceiling. Display case with 3+3 polycarbonate flap doors on customer side, 2 sliding doors on operator side. Refrigerated cabinet with 2 hinged doors complete with GN 1/1 guides. With condensing unit. Condensed water drain on bottom. Independently managed temperature and defrost of the top and the cabinet by digital programmable thermostats. Automatic defrosting. R290 refrigerant. Cooling power at -15°C: 0.86 kW. Depth w/tray slide: 1000 mm. Open/ refrigerated (+2/+10°C) cupboard 900x590x420 (223 lt.)/ 800x540x350 (151 lt.) mm. Display case lighting.
