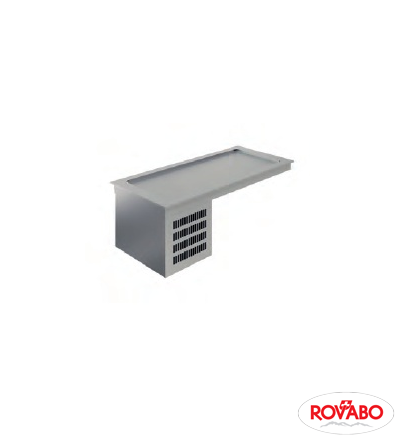

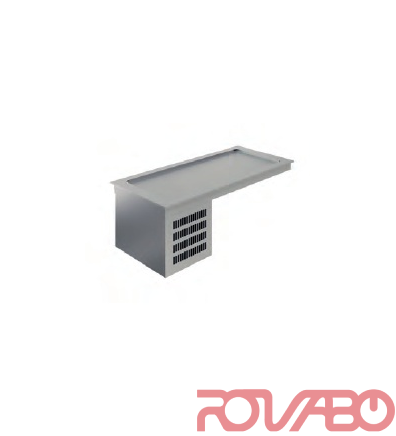

Static refrigerated top 4 GN1/1, -10/-3ºС
Model IHCPR4
Power Type Electrical
Power 0.5 kW
Temperature -10/-3 °C
Capacity 4xGN1/1
Dimensions 1455x635x530 mm
Voltage 230 V/1/50 Hz
Stainless steel top AISI 304, th. 12/10. Top with pressed inset for an easy cleaning. Contact cooling refrigeration through contact coils under the top. Condensed water drain on bottom (evaporation kit on request). Insulation by high density expanded polyurethane without C.F.C. and H.C.F.C. With condensing unit or pre-set for remote refrigeration. Digital control system for temperature adjustment and defrosting. 1280x510x20 mm top. R452A refrigerant gas. Inlet/ outlet gas pipe - ø6/ 10 mm. Cooling power at -30°C - 0.32 kW.
Accessories
ifs4_1732129927-ad372b79456744212f3f02024befaa4f.jpg Tempered front glass for curved gantries 1340x280 mm
IFS4
ils4_1732130168-8dfc9c9b42d4eb6a2e4592e1743c4ad9.jpg LED lighting for gantry 4 GN 1/1
ILS4
irs4_1732130527-68043ea44f513e20dbdc0d0f5d70b2f3.jpg Heating element for gantry 4 GN 1/1
IRS4
isvd4_1732130528-ec54b340d559059e8eaa27acd28989ea.jpg Gantry with double curved glass 4 GN 1/1
ISVD4
isvs4_1732130528-a0e24e0491ab44f89f5cedb712fa2ac3.jpg Gantry with single curved glass 4 GN 1/1
ISVS4
ivcl4_1732130649-af71d93711c43be47def7ea238d29cde.jpg Closed display case with lighting element and sliding doors, 1440x630x460 mm
IVCL4
ivc4_1732130649-5a316d23f4ced0ee64230d2b8d5cfa34.jpg Neutral and closed display case with sliding doors, 1440x630x460 mm
IVC4
ihcvrif4_1732130168-db6a65260760f24efd525136d86fd14c.jpg Refrigerated display case with bottom 4 GN1/1, +4/+12°С
IHCVRIF4
ihcvri4_1732130168-09c4b4075354a9f63aa07fdb271674ab.jpg Refrigerated display case without bottom 4 GN1/1, +4/+12°С
IHCVRI4
i7cm4_1732128967-a527e87760f0965e96c4318676e0daa6.jpg Mobile cover 1450x625x585 mm
I7CM4
i7vcr4_1732129567-284c722ec7dd8a752bc1fcb808d9f478.jpg Closed display case with heating element and sliding doors, 1440x684x460 mm
I7VCR4
