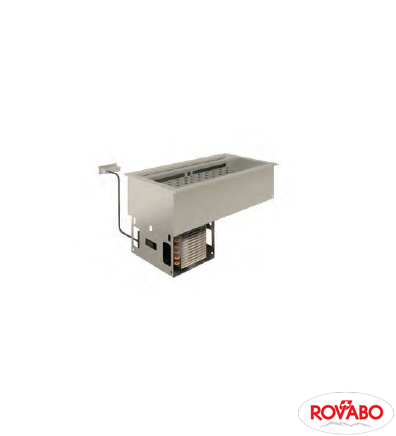

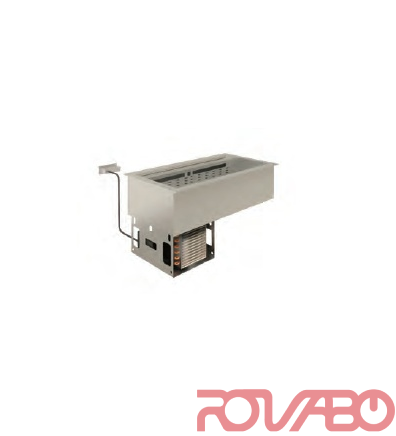

Refrigerated and ventilated tank, 3 GN1/1, -1/+5°С
| Model | I76HCVRV3 |
| Power Type | Electrical |
| Power | 0.6 kW |
| Temperature | -1/+5°C |
| Capacity | 3 GN1/1 |
| Dimensions | 1125x760x755 mm |
| Voltage | 230V 1F+N |
Stainless steel top AISI 304, th. 12/10, 980x510x30/150 mm. Refrigerated laminar airflow. Stainless steel height-adjustable blind bottoms (useful height 30-150 mm). Evaporator with anti-corrosion coating, which can be lifted to easily clean the well. Condensed water drain on bottom (evaporation kit on request). Insulation by high density expanded polyurethane without C.F.C. and H.C.F.C. With condensing unit. Defrost is performed through stop of the compressor. Digital control system for temperature adjustment and defrosting. Capillary expansion. R290 refrigerant gas. Cooling power at -10°C: 0.91 kW.
