Electromechanics

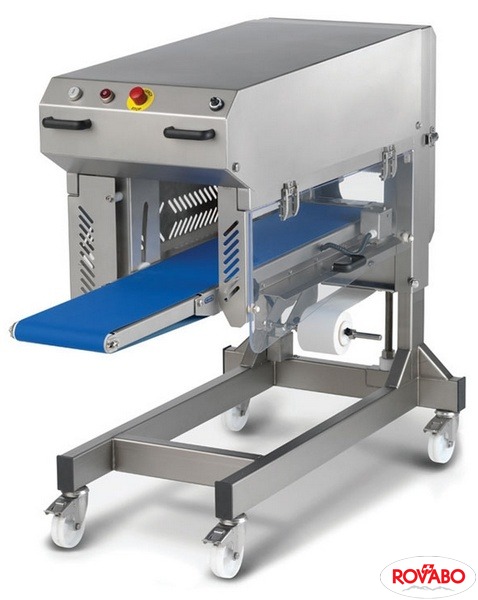

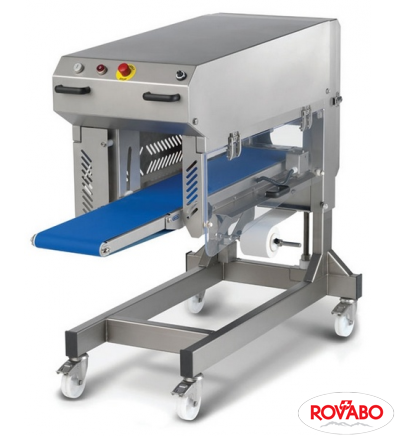

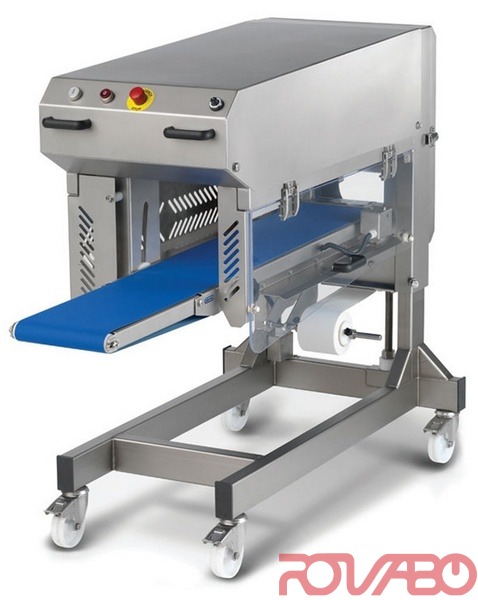

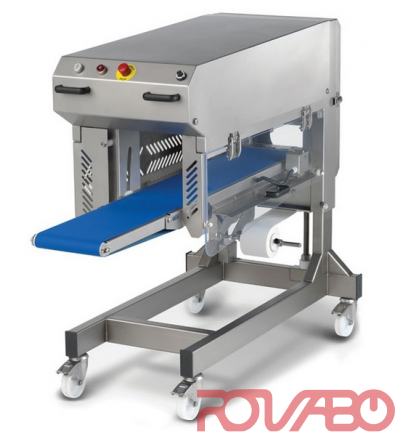

Stainless steel casing and enclosure. All parts in contact with mincemeat in certified food-safe material. Heavy-duty, high-output. Variable speed, conveyor belt: 6 - 30 medio 16 m/min. Speed setting device and 4 steering wheels. Maximum hygiene according to the HACCP method. Connecting kit according to specifications for quick and easy on the line connection of various meat-grinders. Adjustable outlet belt height for easy connection to downstream packaging systems. Portioning area with stainless steel cutting blade and paper roll. Photocell-adjustable portion length. Head 32/98 - 42/130. Meat-grinder head centre height: 550-750 mm. Portion outlet height: 450-850 mm. Portions/min: max 90. Complete of nr. 2 drain / outlet devices (approx. 95x65 mm and 95x85 mm section). Variable weight from 200 g to 1500 g. Variable lenght from 50 mm to 350 mm. Suitable for C/E 900 and C/E 900R mixer-grinders (the mixer-grinder to which the portioning machine is to be connected must be equipped with a speed variator; the mixer-grinder, if equipped with a mouth guard, cannot be connected to the portioning unit) to automatically process minced meat portions, either in the “free flow” or “patty form” mode. The meat mincer+portioner is especially designed to improve productivity in hypermarkets, meat processing shops, etc. Accessories: JOIN KIT - Additional joining kit for connecting the portioning machine with mixer-grinders C/E 900 – C/E 900 R.
