Electromechanics

Lifter Newton up to 150 kg h2035 kg
Model NEWTON150_H3
Power Type Neutral
Dimensions 875x525x2370 mm

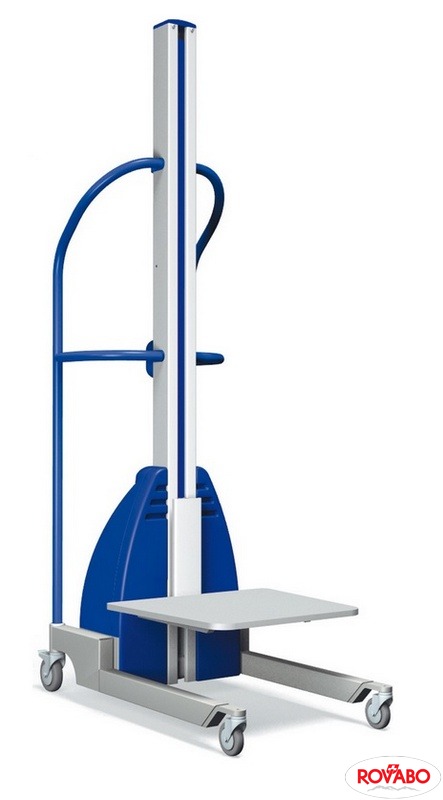

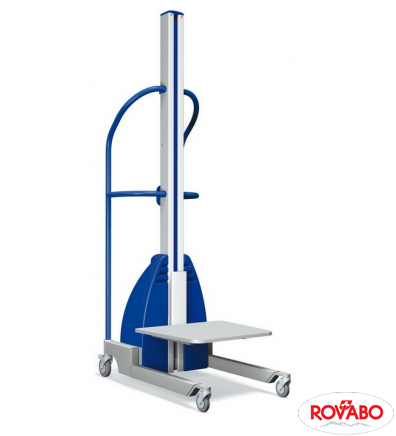

Newton 150, a flexible and reliable lifter, suitable for most environments. Fixed control unit, on/off switch, battery indicator and a separate battery charger. Max lifting height - 2035 mm. Min lifting height - 140 mm. Lifting tool - Platform, 485x460 mm. Lifting speed - 80 mm/sec. Batteries - 2 x 7,5 Ah, 12V. Charging Voltage - 100-240 V. Charger - 24 V, 1 A. Safety class IP 41. Wheel diameter - 50 / 125 mm. Material - Stainless, Alu, ABS.
Accessories
h14892_1732128008-902215820b1326f44e96695f51ea1be7.jpg Manual turning device for NEWTON70, NEWTON100, NEWTON150
H14892
h9452_1732128126-56b2c515c923452ebd1a74c072167724.jpg Reel mandrel for NEWTON70, NEWTON100, NEWTON150
H9452
h9451_1732128126-d42f9519bc9785ea35c4a09b4c11a828.jpg Twin mandrel for NEWTON70, NEWTON100, NEWTON150
H9451
h9450_1732128126-4a9b5b6635f953f3ab3bcf744944c42b.jpg Roll plate for NEWTON70,NEWTON100, NEWTON150
H9450
h9441_1732128126-4c714b1d3e4a28ac22fb5509fcc305cf.jpg Crane arm with hook for NEWTON70, NEWTON100, NEWTON150
H9441
h9456_1732128126-895b30472915c57ab82c3301c531e52a.jpg Expander for rolls 70 mm, NEWTON70, NEWTON100, NEWTON150
H9456
h9455_1732128126-9d92c286212a0857fc2b9b55ca130486.jpg V-Block cradle for NEWTON70, NEWTON100, NEWTON150
H9455
h9454_1732128126-8711475cf72ced9e058d182ab5470ee6.jpg Fork 20x38, L500 mm for NEWTON70, NEWTON100, NEWTON150
H9454
h9453_1732128126-88250e4582a292cc2810097ff62ab97e.jpg Cover plate in stainless steel NEWTON50, NEWTON70, NEWTON100, NEWTON150
H9453
